Introduction

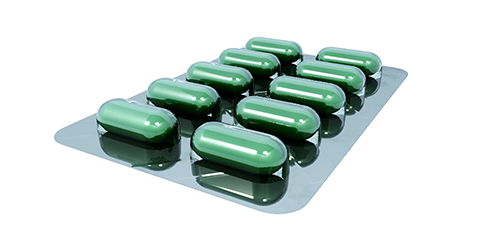

The machine is applicable to capsule and tablet. ln addition, it is also applied to automatic high-speed blister packaging of milk powder candy, buccal tablet, chewing gum and marble chocolate. The plate positive pressure forming is used, and PVC blister appearance is even; the roller is sealed by overlapping curve, and appearance is beautiful and sealing effect is reliable; the batch number is easily replaced, and can be changed every day under the condition of guaranteeing the effect; the punching station can be general punching or micro-side punching and punching without side, which can save greatly save cost, minimize human cost and material cost, and enhance greatly production efficiency.
The high-speed roll type blister packing machine is designed by servo traction mechanical drive, and features with high degree of automation, quick replacement of components and working modes, and low fault rate. It can match with the boxing machine and meet various on-line packaging requirements of various types.
Characters:
◆ Frequency conversion to adjust speed, adjustable travel, touching -type heat, shaped with positive pressing, capsule turning heads, picture register, air washer heat seal, upper and lower net lines, punching without cross-ward waste edges;
◆ Man-machine interface, sensor test with rejecting device;
◆ Adopt hand-wheel to adjust the shaping position, creasing position and punching position;
◆ Modules are fixed with fix pin, registering accurately and changing modules easier;
◆ It is also used to fill many kinds of medicines and all sorts of special-shaped materials in one plate;
◆ Adopt stainless steel and nonpoisonous material to make all the parts which are to touch medicines, meeting the requirements of GMP;
◆ This machine has been designed into separated body, which is easily moved into lifts and workshops.
Technical parameter:
| Model | DPP-88 | DPP-160 | DPP-250 |
| Punches frequency(times/min) | 10-33 | 15-40 | 20-50 |
| Production capacity(pcs/hour) | 2400 | 4,000-7,000 | 7,500-14,000 |
| Max. Forming area and depth(mm) | 105*70*26 | 130*100*26 | 240*130*26 |
| Stroke range(can be customized) | 30-80 | 20-110 | 30-140 |
| Standard plate size(can be customized) | 80*57 | 80*57 | 80*57 |
| Clean compressed air(Mpa) | 0.4-0.6 | 0.6-0.8 | 0.6-0.8 |
| Total power supply | 380V/220V 50Hz 2.8KW | 380V/220V 50Hz 5.2KW | 380V/220V 50Hz 5.5KW |
| PVC hard film(mm) | 0.15-0.5*110 | 0.15-0.5*160 | 0.15-0.5*250 |
| PVC aluminum film(mm) | 0.02-0.035*110 | 0.02-0.035*160 | 0.02-0.035*250 |
| Dialysis paper(mm) | 50-100g*110 | 50-100g*160 | 50-100g*250 |
| Mould cooling | Tap water or recycling water | Tap water or recycling water | Tap water or recycling water |
| Noise(dBA) | ＜75 | ＜75 | ＜75dBA |
| Overall dimension(mm) | 1840*590*1100 | 2300*650*1615 | 3100*670*1650 |
| Net weight(kg) | 520 | 900 | 1500 |
