Product Series

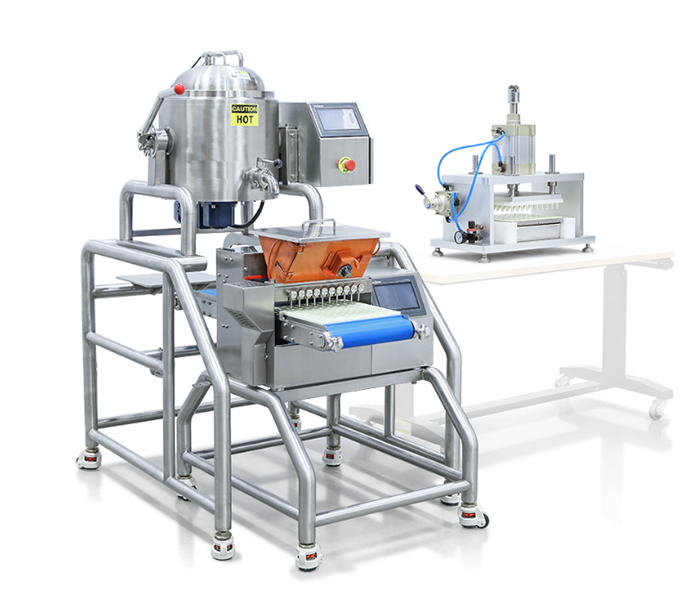

Small Scale Gummy Production Line
Classification:
keywords： Small Scale Gummy Production Line
E-mail:
Telephone:
Details

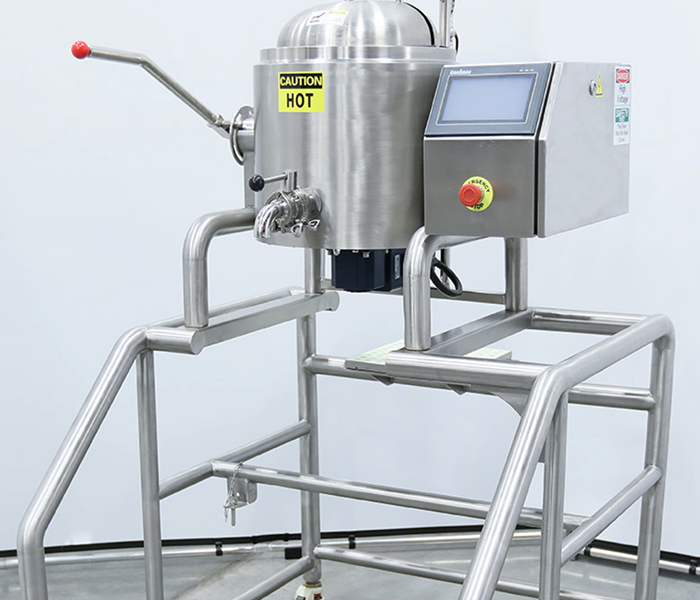

1.Tabletop 20 Liter Cooking Kettle with bottom and side scraping. HMI control system with 20 different product setting memory banks, variable speed mixing and heating (up to 180°C), cooling system, tilt forward discharge or front bottom butterfly valve discharge, safety interlocking lid. On round tube sanitary frame. Portable with locking casters. 220v/1ph/60hz
2.Fully Automatic Tabletop Servo Depositor with servo drive cleated conveying to automatically index silicone sheet molds under depositing nozzles. Operator feeds molds onto conveyor from front, cleated conveyor will present them to nozzles for filling and to rear off belt and onto holding plate until removed by operator. Rated at up to 25 deposits per minute or 10,000 deposits per hour. Programmable for up to three (3) deposits per mold pocket.
All FDA approved product contact parts.
Ten (10) depositing nozzles for fill volumes from 0~4.5ml with precision servo drive pump capable of +/- 2% weight variation.
HMI control system with 20 different product setting memory banks.
7 Liter hopper with variable heating controls: 30~150°C.
Voltage: 230V/1ph, Machine Weight: 60kg,
Machine Dimensions: 590 x 400 x 450mm (L x W x H).
Round tube sanitary frame.Portable with locking casters.

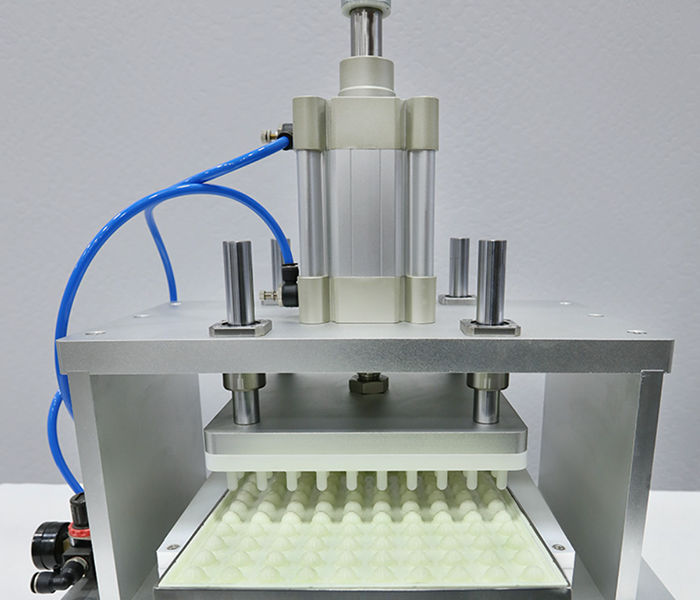

3. Semi-Automatic Pneumatic Demolding Station. Place reinforced silicone mold onto platform, press pneumatic discharge buttons (requires both hands for operator safety) and gummies eject onto tray below.

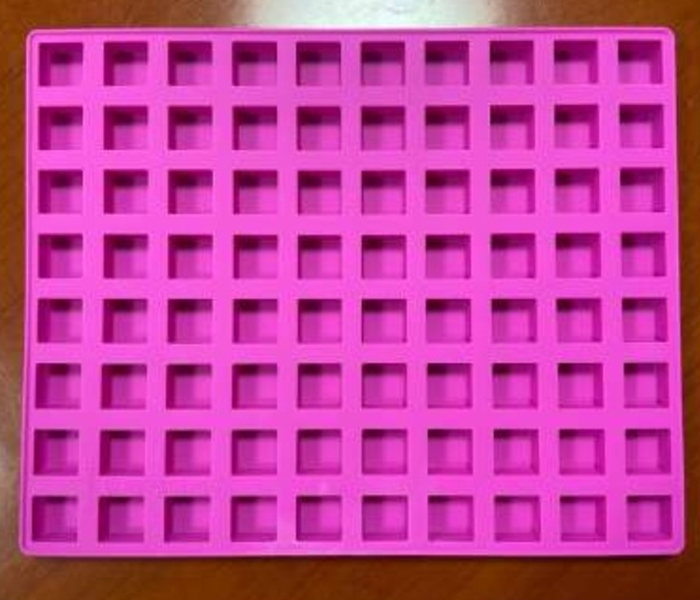

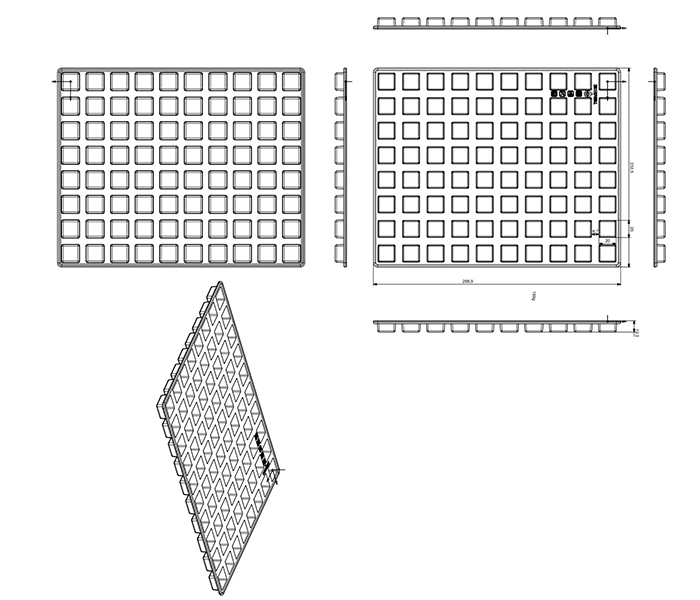

4.Molds (sizes and shapes can be customized)
