Chilling System
The chilling unit is modular to fit your available floor space.
Refrigeration capacity: 35L
Power: 220 V 50 Hz 1P 1Kw
Dimensions: 600×500×1100mm
Weight: 100Kg
Product Series
Mini R&B Softgel Machine
Classification:
keywords： Mini R&B Softgel Machine
E-mail:
Telephone:
Details
The mini version JLR-50 softgel production system to satisfy customers small batch of output requirement-support newly start-up business or labs used to make for a test.
Features:
●Up to 2,000-4,000 pcs/hour(8# OVAL 4RPM)
●All-in-one set up includes everything you need to get up and running
●Variable operation speeds up to 4RPM
●Compact size allows for smaller footprint
●Quick and easy replacement of change parts
●Suitable for use in pharmaceutical, food and recreational industries
●Color touchscreen control provides easy production management
●Tumble dryers have large, high powered centrifugal fan

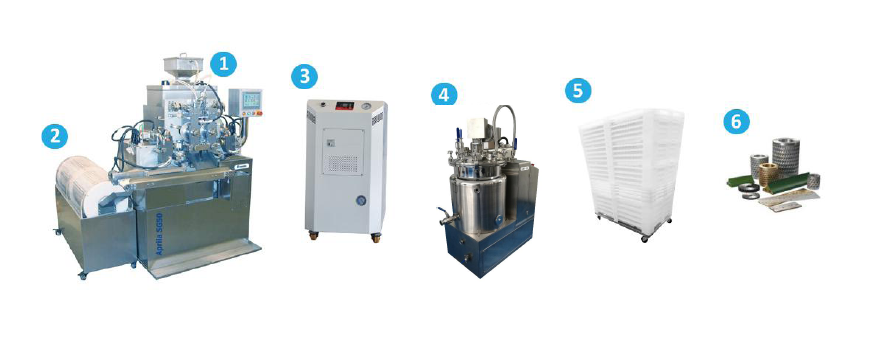

Complete System Includes:
1.JLR 50 Softgel Encapsulator
2.Tumble Dryers
3.Chilling System
4.30 Liter Gelatin Melting/Mixing Tank
5.Drying trolley and Drying trays
6.Change parts (Softgel Tooling)
Softgel Support Equipment
Electric Heating Gelatin Melting Storage Tank
30 liter capacity gelatin melting and mixing tank is made from all stainless
steel construction with sanitary stainless steel valves and clamps, a triple wall
jacket with breather.
Volume: 30L
Temperature: <100℃
Power: 2kW
Dimensions: φ450 x1200mm

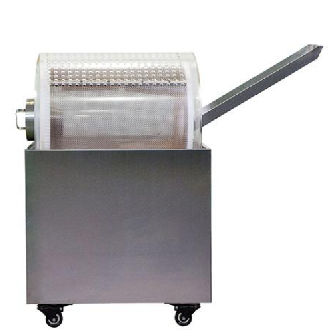

Tumble Dryers
Each tumble dryer has a large, high powered centrifugal fan, and is equipped
with an anti-static device to prevent softgels from sticking due to
electromagnetic charge build-up.
Quantity of tumbler:1
Tumbler size:Φ316x450mm
Efficiency capacity: 50L
Pill quantity: 30000 pills (8 oval)
Dimensions: 500×400×7000mm

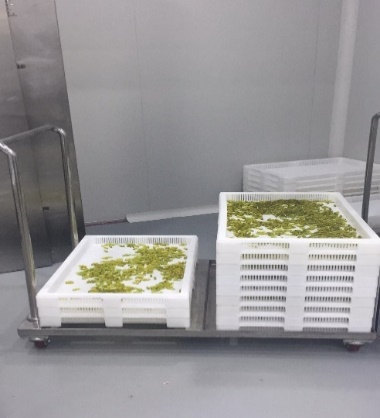

Drying trolley and Drying trays (10 trays/trolley)
The softgels come out of the tumble dryers and are placed on paper lined
drying trays. The trays are then stacked on dollies and pushed into drying
tunnels.
Dimensions: 480×750×55 mm
10 trays stack on a trolly
Softgel Tooling
The Softgel tooling is custom made to meet your needs.
It features harder aircraft grade aluminum.
Overall Size: Φ64X75mm
