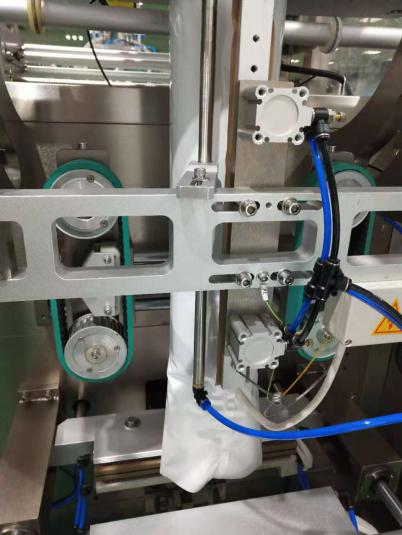

Servo Film Pulling System
High Accuracy in bag length and positioning.
Smooth in Film Pulling
Lower Friction and operation noise
Product Series
Powder filler +VFFS Packing Machine
Classification:
keywords： Powder filler +VFFS Packing Machine
E-mail:
Telephone:
Details
Main machine Configuration
●Filling system of Power
●A film reel auto-alignment system
●One set of central sealing unit
●One set of horizontal sealing unit
●An independent bag former
●One set of servo film pulling system
●One set of cutting system
●An automatic material-level control system
●PLC tracking control system
●touch-control operation system
●A 10-digit press printer
●A product outlet system
●An operation manual in English
4.2 Technical Parameter:
-Pouch Width 80mm-250mm
-Pouch Height 100mm-350mm
-Max Volume 1500ml
-Speed 25-60 ppm
-Accuracy depend on weighier
-Max Film Reel Width 520mm
-Electricity Consumption 3.0KW
-Air Consumption 6-8kg/m2
-Weight 750KG
-Size (L×W×H) 1350mm×1800mm×2000mm
Estimated volume size, actual volume depends on actual material
Speed calculation is based on free flowing granule and solid, actual speed based on actual product testing.
Estimated accuracy, actual accuracy depends on actual material.
Estimated dimension without any accessory add on
4.3 Technical Information:
●PLC computer system, function is more stable, adjustment any parameters not need stop machine.
●It can stock ten dispose, simple to change variety.
●Sever motor drawing film, position accurately.
●Temperature independent control system ,precision get to±1℃.
●Horizontal, vertical temperature control, suitable for several of mix film, PE film packing material.
●Packing type diversification, pillow sealing, standing type, punching etc.
●Bag–making , sealing, packing, print date in one operation.
4.4 Machine Features

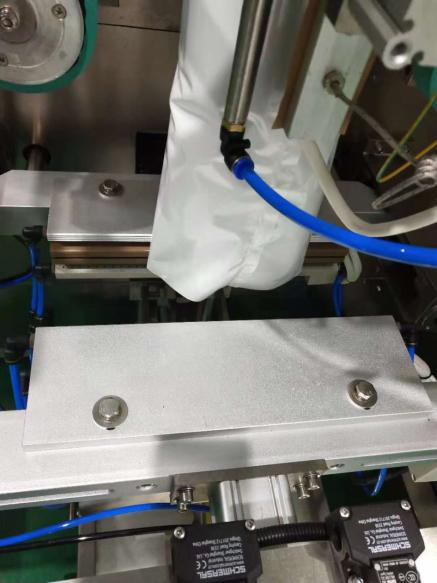

Flexible Horizontal Sealer
Easy to adjust sealing pressure.
suitable for various packaging material and
bag type, high sealing strength without leakage.
