ZSL-A Automatic Counting Machine
Classification:
keywords： ZSL-A Automatic Counting Machine
E-mail:
Telephone:
Details

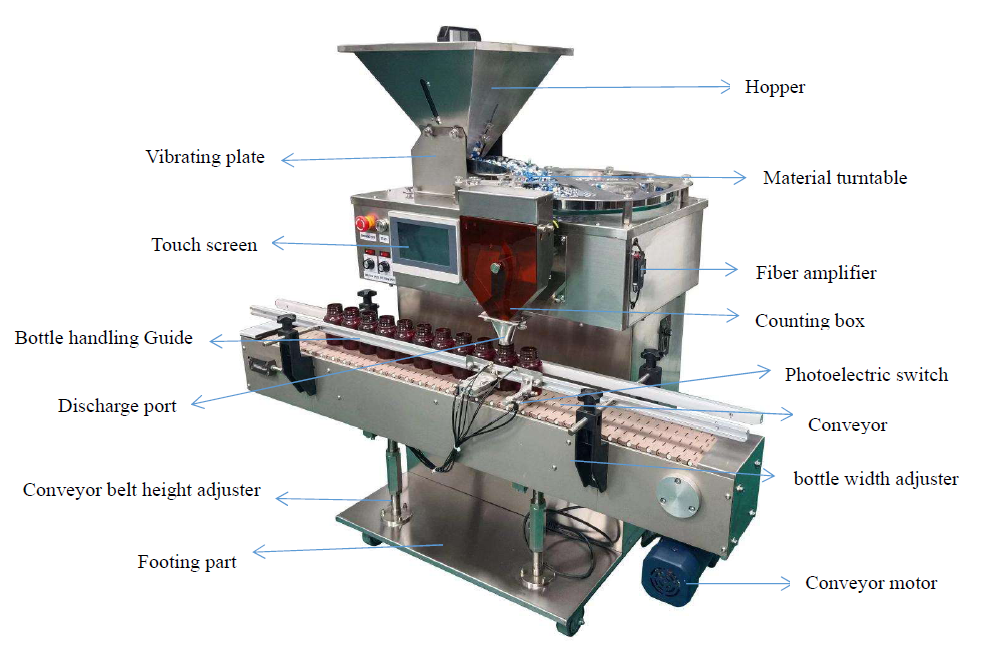

The ZSL-A Full-Automatic Electronic Counting Machine features an integrated conveyor belt, enhancing the functionality of the ZS-2B model by allowing operators to work hands-free.
Advanced Technologies
●Vibrating Channel: Utilizes an internationally advanced design for efficient counting.
●Variable Frequency Oscillator: Adjusts speed for optimal performance.
●PLC Intelligent Control: Managed via a user-friendly touch screen interface.
●Optical Fiber-Sensitive Counting Head: Ensures precise counting.
●Self-Inspection System: Monitors performance and indicates faults.
●Automatic Shutdown: Enhances safety and efficiency.
Constructed entirely from stainless steel to meet GMP standards, this high-tech medical counting device is seamlessly integrated with a collective motor.
Specifications
| Model | ZSL-A |
| Production Capacity(pcs/min) | 500-1500 |
| Application | Hard capsules, soft capsules, tablets, pills, etc. |
| Control device | Touch screen PLC intelligent control |
| Counting method | Infrared detection |
| Suitable size | Capsule model 00 # -5 #, tablet diameter 5-25mm |
| Counting error | ±0.1% |
| Power voltage | 220V/50-60Hz /800W |
| Weight（kg） | 120 |
| Machine dimension | 1300MMX570MMX1300MM |
